The SMB-1000B or SMB-5000 piggybacks onto the DT-1000D to include experiments with stepper and servomotors. Circuits are preassembled; with outputs connected to solderless connectors. These boards are designed to accommodate the experiments manual Digital Electronics Principles and Applications by Roger Tokheim. ISBN 978-0-07-331995-7
Click herPIC-1000 Power interface cable

PIC-1000 Power interface cable

This cable is used to connect existing power supplies to the DT-1000D Digital Trainer. It consists of a 36" long 4/C # 20 AWG (7/28) cable.36" long with color coded banana plugs on one end and keyed connector that interfaces with the DT-1000D on the other.

Click here to add text.

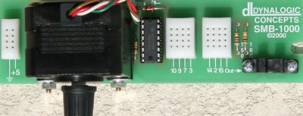

SMB-1000B Stepper Motor board with mounted Opto-coupled interrupter module.
ML6022-1D Table Top Power Supply

The ML6022-1D is a regulated power supply with a connector compatible with the DT-1000D Digital Trainer. It offers the flexibility of teaching the digital program in a separate area.
Fixed Outputs:
5VDC @ 1Amp
+ 12 VDC @ 200ma
WDH 4-1/8" X 2-5/8" X 1-1/2"

WDH 5-3/8" X"1-1/2" X.063o add text.
CK-2001 Digital Component Kit

The CK-2001 consisting of the necessary TTL, CMOS, resistors, capacitors, pots, etc. to support the experiments in the experiments manual Digital Electronics Principles and Application by Roger Tokheim.
Components are stored in a six compartment hinged cover plastic case with labeled component location. Piezo buzzer, relay DC motor and displays mounted on the DT-1000D and DB-1000A are not included
Size: WDH-10-1/2" X 6-9/16" X 1-1/2"

 WK-1003 Jumper Wire Kit

 Consisting of 350 pieces # 22 AWG pre-
 stripped and pre-formed solid wire jumpers.
 25 piece each of lengths 0.1 to 5.0", 14
 different size, and 13 different colors. Wires
 are stored in a 14 compartment hinged
 covered plastic case.
 Size: WDH 10-1/2" X 4-3/4" X 1-1/8"

< Previous dd text.
LP-560 Logic Probe TTL-CMOS

Probe is a high-speed digital troubleshooting tool capable of capturing pulses as narrow as 20nsec. Four LED indicators determine the signal condition. Special memory circuits capture pulses fast oscilloscopes may miss.
servo motor trainer

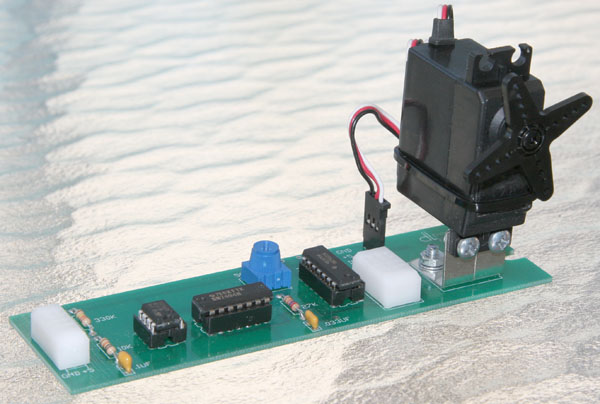

SMB-5000 Servo Motor Board.
WDH 5-3/8" X 1-1/2" X .063
